Panasonic MHMF152L1G6M Servo Motor

Series#: Panasonic

Product Details

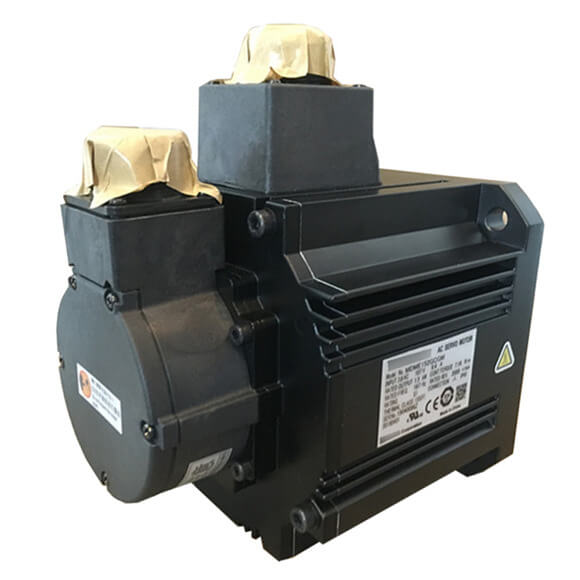

Panasonic MHMF152L1G6M is a 1500 W high-inertia servo motor from the MINAS A6 MHMF series.
It has a 200 V voltage specification, rated torque of 7.16 N·m, momentary maximum peak torque of 21.5 N·m, rated speed of 2000 r/min and maximum speed of 3000 r/min.
The motor uses a 23-bit Absolute/Incremental encoder system, has a 130 mm square flange, keyed shaft with oil seal, IP67 protection, and no holding brake.

Specification

The Panasonic MHMF152L1G6M is a high-inertia servo motor in the MINAS A6 MHMF series. Key product facts: Model Number: MHMF152L1G6M Family: MINAS A6 Series: MHMF Type: High inertia Rated Output: 1500 W Voltage Specification: 200 V Rated Torque: 7.16 N·m Momentary Maximum Peak Torque: 21.5 N·m Rated Speed: 2000 r/min Maximum Speed: 3000 r/min Encoder: 23-bit Absolute/Incremental system Encoder Resolution: 8388608 Flange Size: 130 mm square Holding Brake: Without Oil Seal: With Shaft: Key-way Protection Class: IP67 Mass: 7.7 kg This specification is based on Panasonic documentation for the exact model MHMF152L1G6M.
